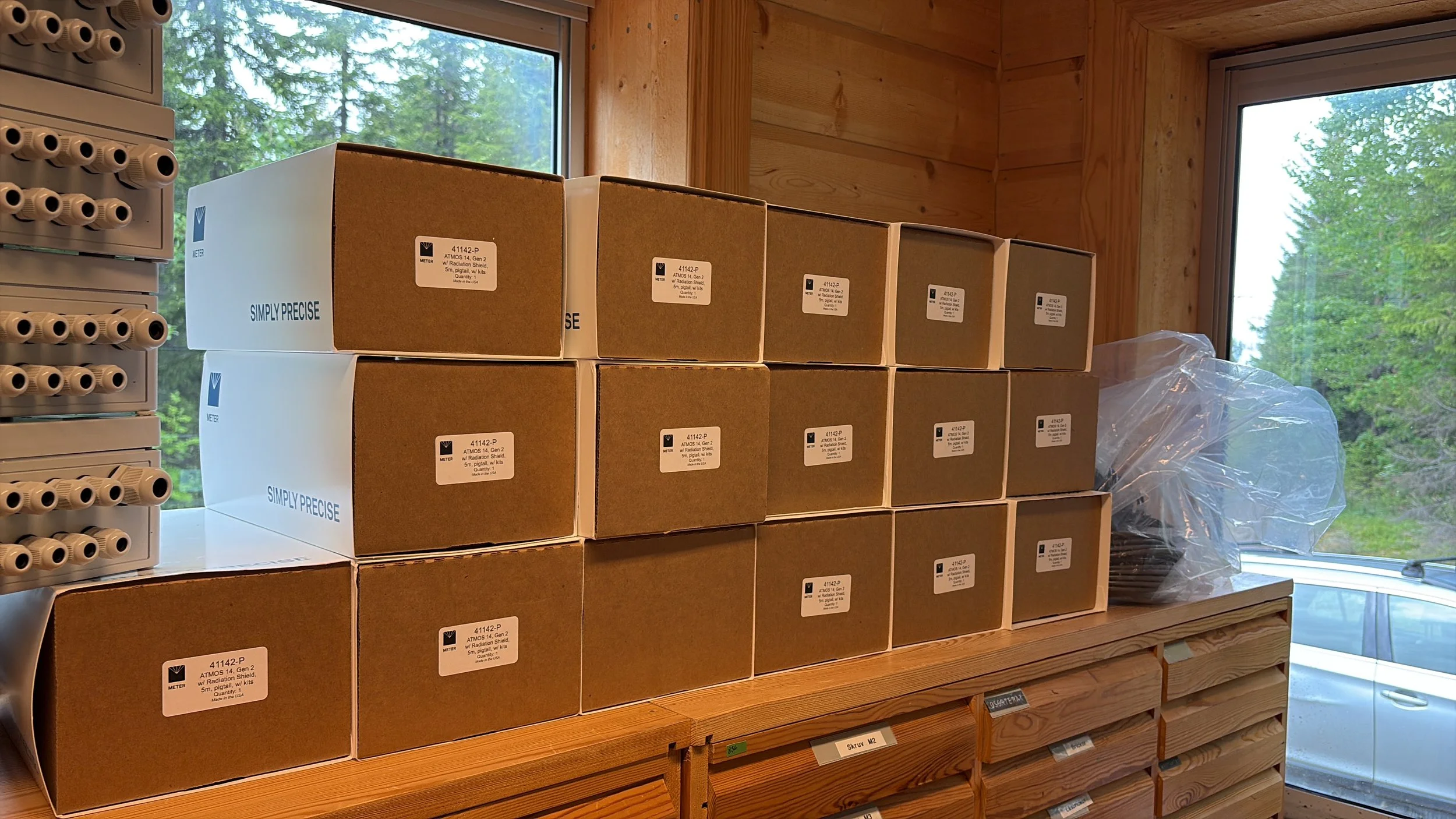

The Flakaliden project has reached a major milestone: Procurement is officially complete. With all hardware secured, the project is now shifting gears from the acquisition phase to active programming, assembly, and field deployment.

This expansion transforms our monitoring capabilities, moving us toward a fully integrated, high-resolution view of the ecosystem's "pulse."

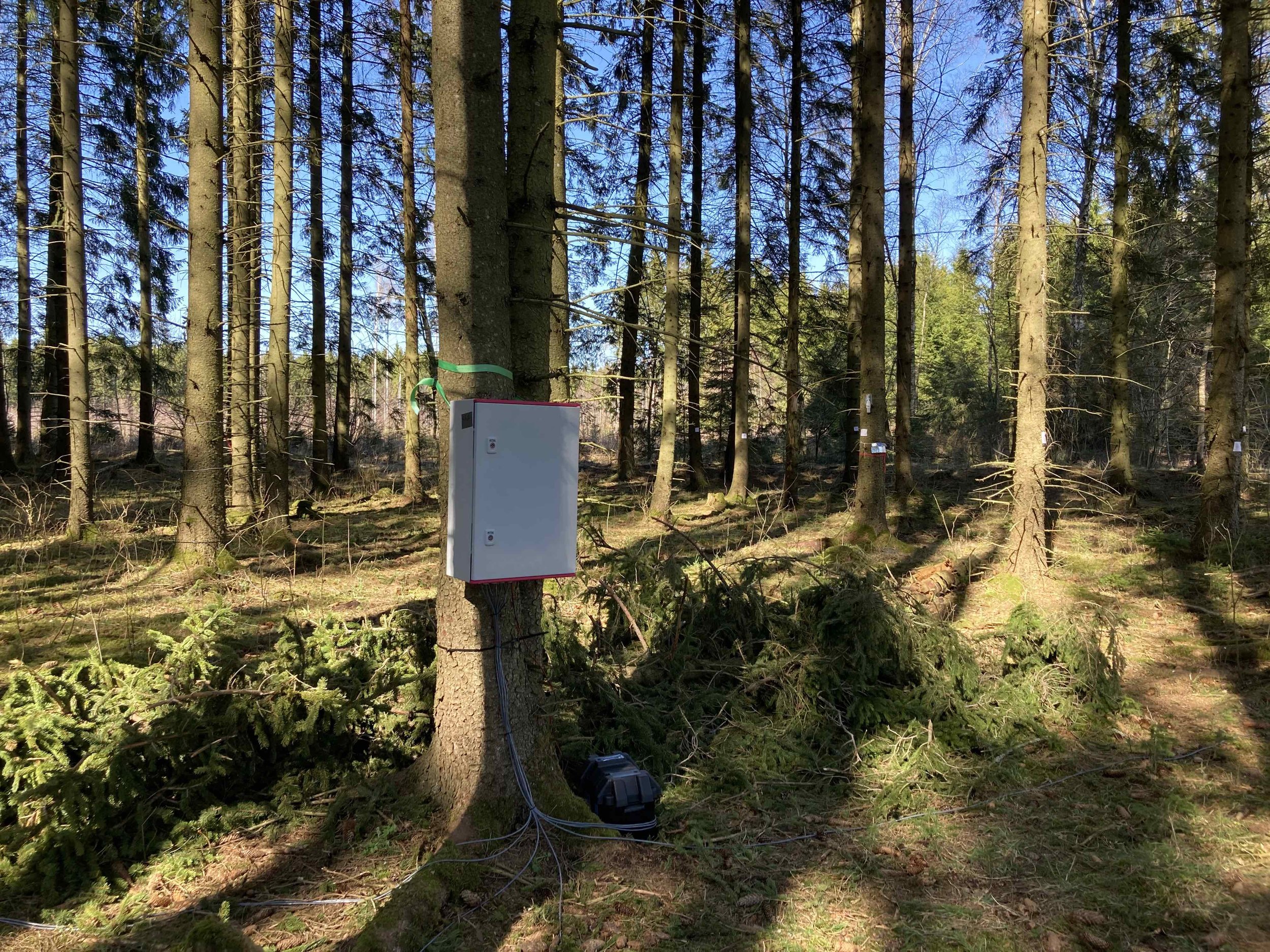

Phase 3: Deployment

Now that we have written all codes to talk to multiple sensor, from multiple vendors, to follow a coherent data collection and transmission protocols, we focus on the field-intensive their stage: deployment. During deployment we will:

1. Spatial design: Locate strategic points in the forest where we can install a vast array of environmental and tree-level sensors to capture the full Soil-Plant-Atmosphere Continuum.

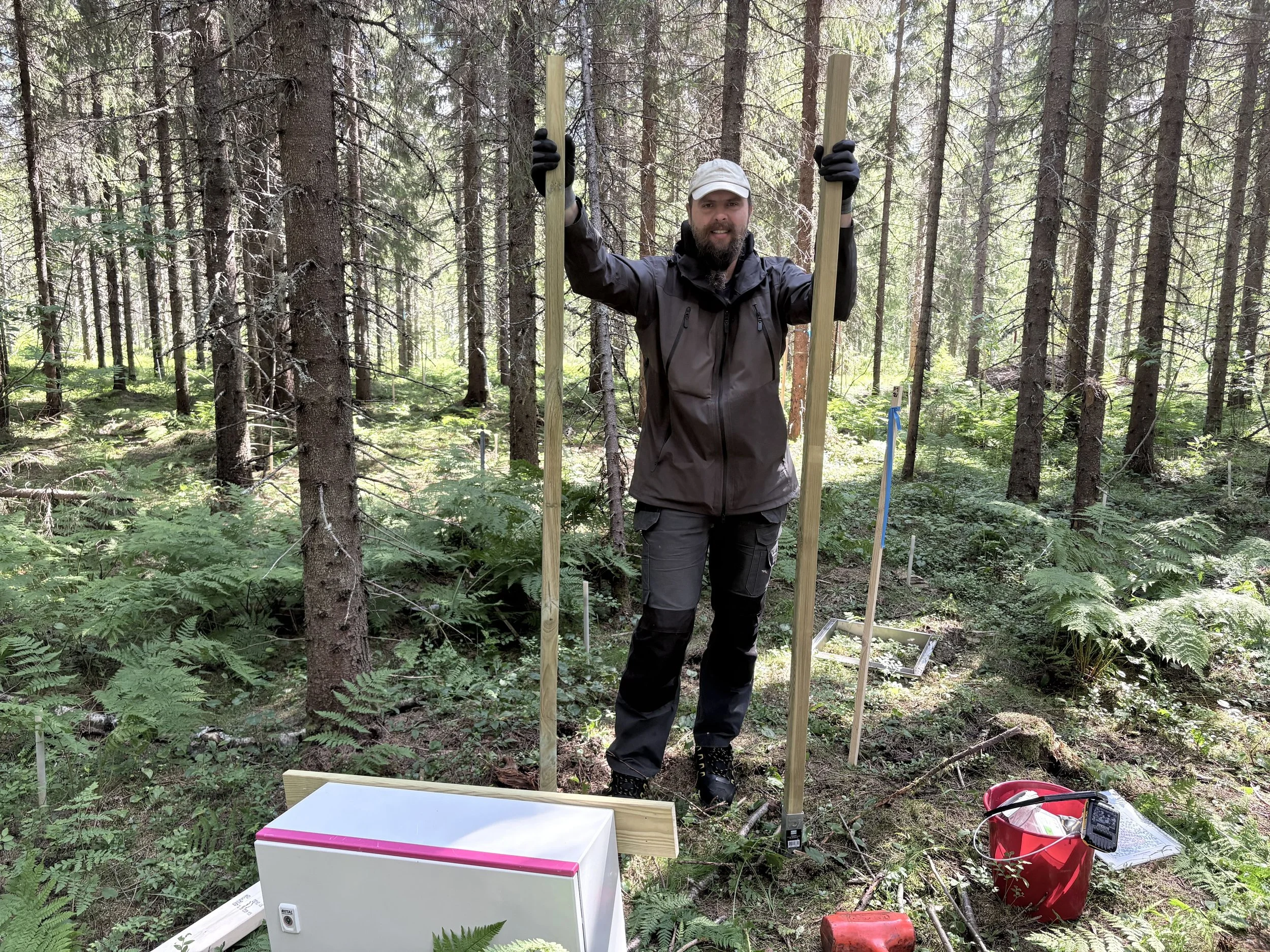

2. Deployment: Data quality is directly linked to sensor installation and deployment. From drilling techniques for sap flow sensor installation, to proper installation protocols of soil moisture and soil water potential sensors, we are dealing with every small detail.

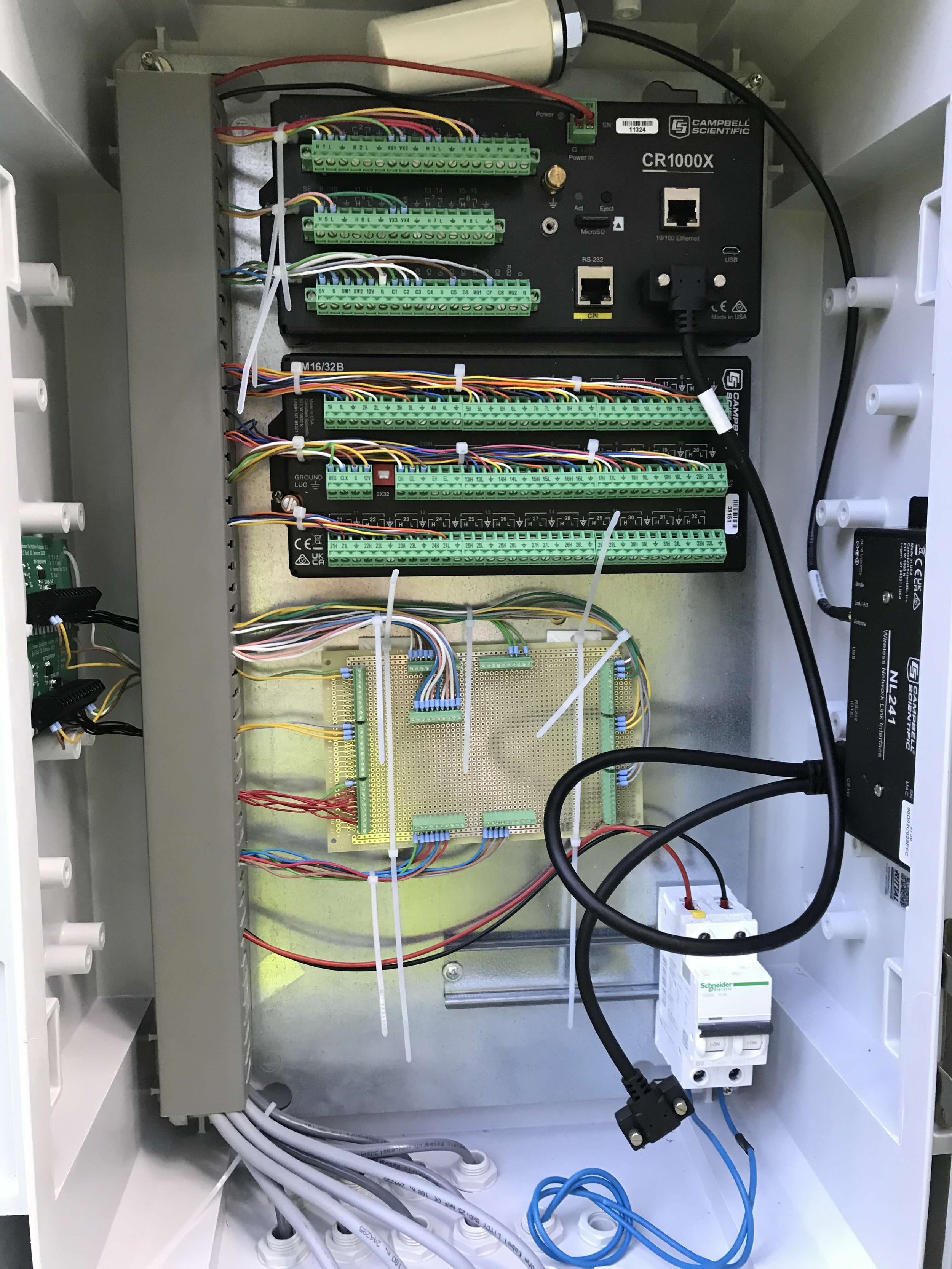

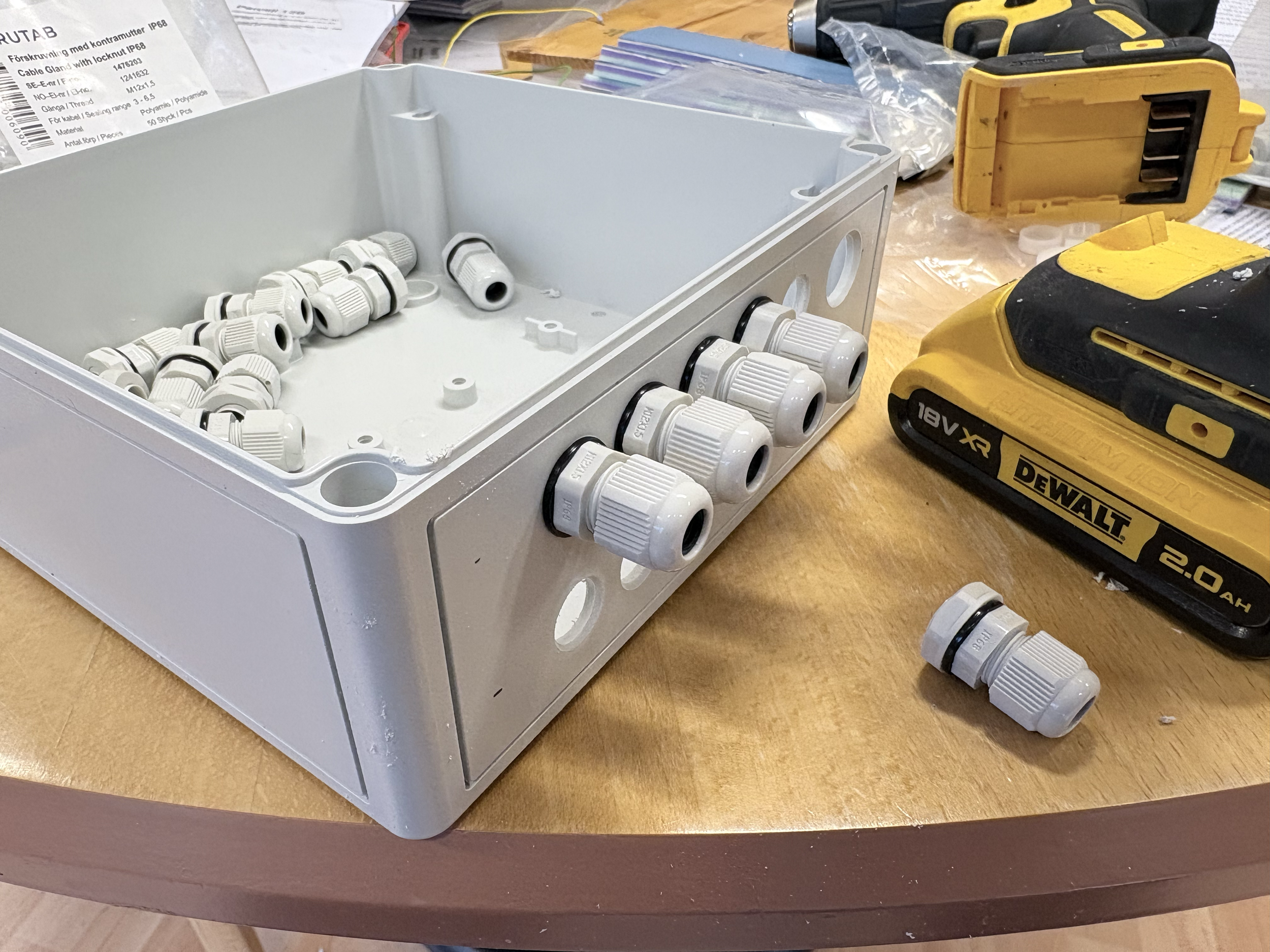

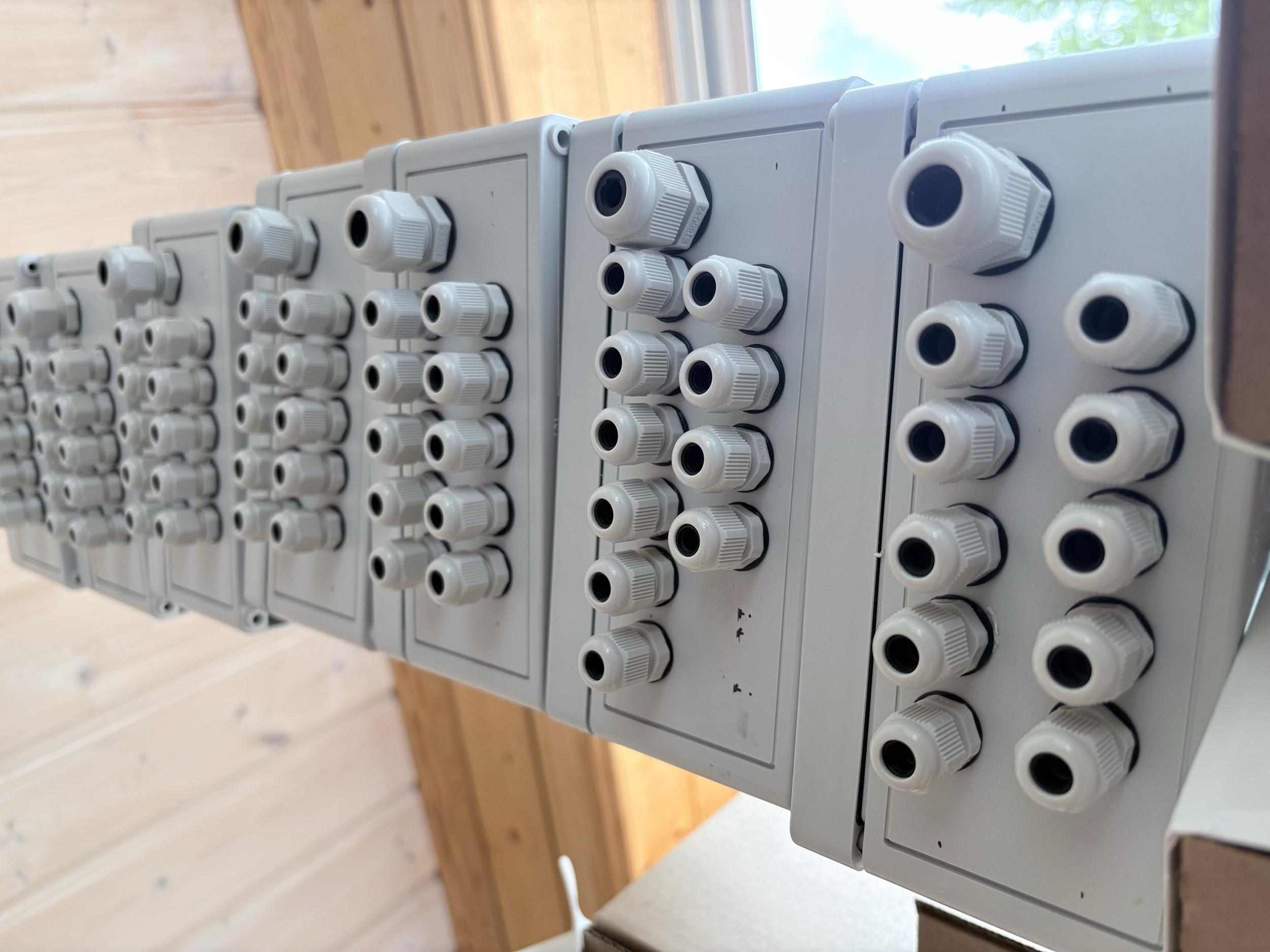

3. Wiring: Design and implement wiring systems that allow us to combine multiple digital sensors from different vendors, into a single wire and single port in our data loggers. This step is crucial to reduce the amount of wires in the field.

Key Additions & Their Strategic Value

The new sensor suite allows us to bridge the gap between environmental "supply" and plant "demand."

1. Below-Ground & Hydrological Dynamics

• Soil Temperature, Water Content and Potential: These allow us to move beyond simple moisture levels to understand exactly how hard a plant must "work" to extract water from the soil.

• Groundwater Depth, Temperature and Electrical Conductivity: Essential for tracking the water table's influence on root zones and the thermal stability of the subsurface environment.

2. Atmospheric Drivers

• Air Temperature, Relative Humidity and Atmospheric Pressure: Combined, these define the Vapor Pressure Deficit (VPD), the primary atmospheric "tug" that pulls water through the trees.

• Photosynthetically Active Radiation (PAR): Directly measures the light energy driving photosynthesis, allowing us to correlate growth with available solar energy.

• Snow Depth: Provides critical data on winter insulation for roots and the timing of the spring "recharge" for the water table.

3. Plant-Level Physiology (The Tree "Heartbeat")

• Sap Flow & Point Dendrometers: These measure the actual movement of water through the xylem and the microscopic growth/shrinkage of the trunk, giving us real-time feedback on tree health.

• Stem Water Content: These sensors provide a rare look into the tree's internal plumbing—revealing how much water is stored in the wood and how much "stress" the hydraulic system is under during dry spells.

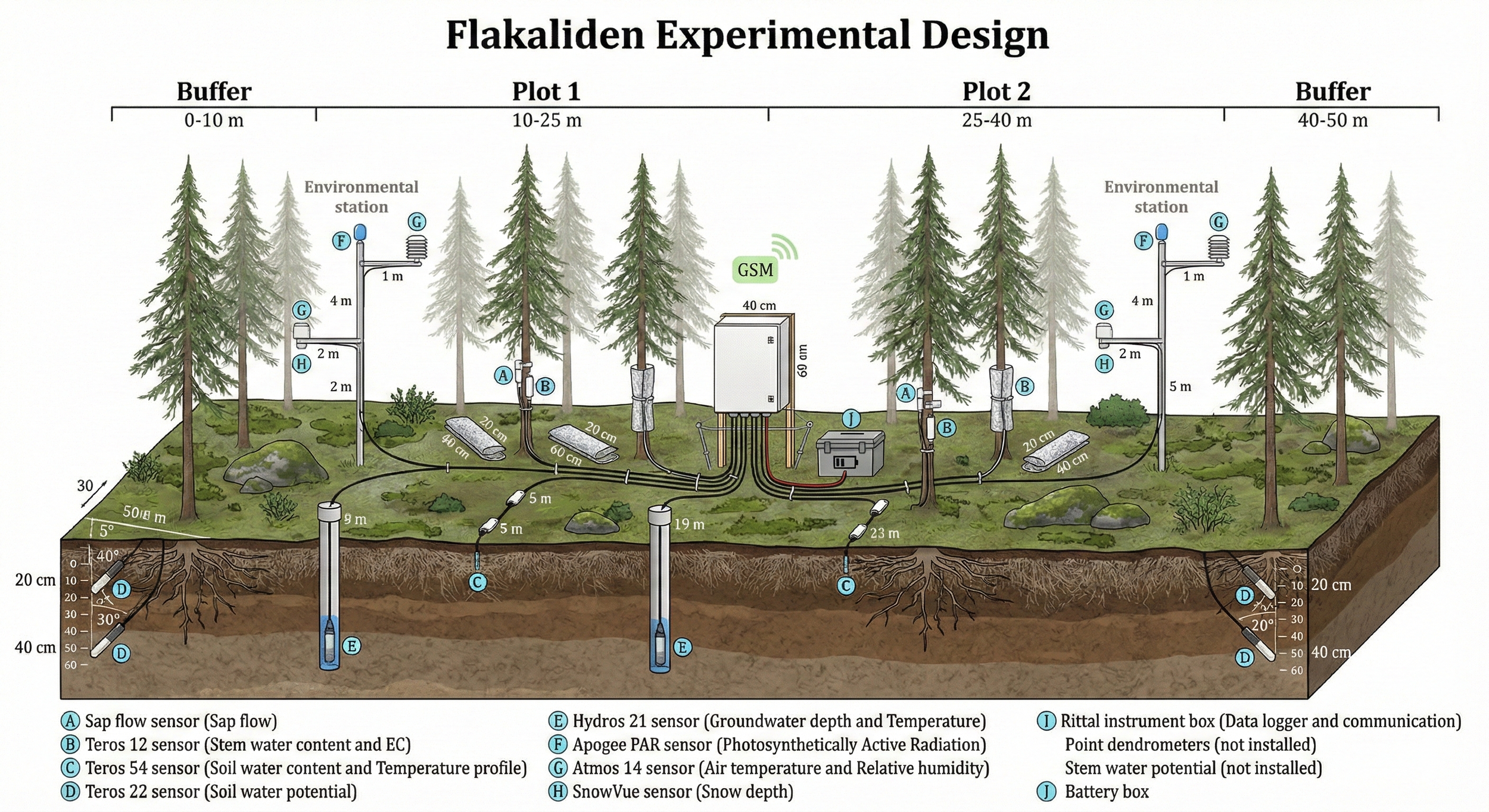

Sensor Deployment Summary

Hydrology:

• Soil moisture and temperature at 4 depths (15, 30, 45 and 60 cm). Six replicates per site.

• Soil water potential and temperature at 2 depths (20 and 40 cm). Four replicates per site.

• Ground water depth, temperature and electrical conductivity. Two replicates per site.

• Snow depth. Two replicates per site.

Atmosphere:

• Air temperature, relative humidity, atmospheric pressure. Two replicates per site.

• Photosynthetic active radiation. To replicates per site.

Tree physiology:

• Sap flow sensors. Four replicates per site. Expandable to 10 per site.

• Point dendrometers. Four per site. Expandable

• Stem water content. Four per site. Expandable
